Use Sentinel hub in QGIS 3.2.1 – Remote Sensing

use sentinel hub in QGIS 3.2.1

Sentinel Hub is perfect source for  satellite data. Here in this post we are providing pictorial tutorial on how to use sentinel hub in QGIS 3.2.1. You can also download Sentinel without using plugin check download free satellite images from satellite.

You can view your image in our tool MAPOG Tool  (supports geotiff)

Use Sentinel hub in QGIS 3.2.1 – Procedure

Sentinel hub plugin helps you to confiqure directly the sentinel hub images in qgis. It makes your study more easy.

  1. Go to Plugins in QGIS window and tap on manage and install plugins.

use sentinel hub in QGIS 3.2.1

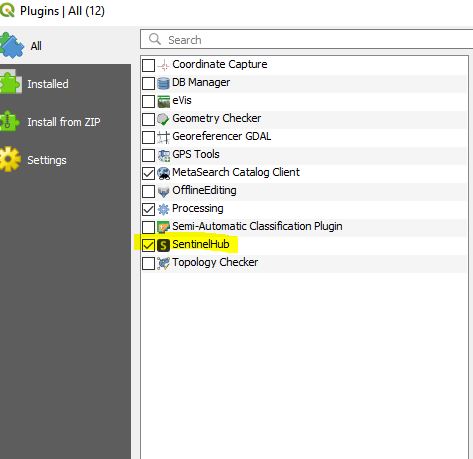

2.  Search and select Sentinel Hub and install it

use sentinel hub in QGIS 3.2.1

3.  After installing Sentinel Hub, Sentinel hub plugin icon will be visible on toolbar.

use sentinel hub in QGIS 3.2.1

4. Click on Sentinel Hub Plugin icon. Following will window open. Now fill your instance ID .

use sentinel hub in QGIS 3.2.1

5. You can find your instance id at Sentinel Hub Configuration Utility. If you don’t have account on Sentinel Hub, you can apply for trial account of sentinel hub . And take benefit of its service for some days.use sentinel hub in QGIS 3.2.1

6. You can add new configuration according to your requirement. Also able to create configuration from existing one like simple WMS instance. You can use template instances like sentinel-1 template, digital elevation model, full landsat- 8 instance etc.

use sentinel hub in QGIS 3.2.1

7. After instance id you can fill other parameters for rendering. Select the layer for required instance. Also select the CRS (Coordinate Reference System). Select the the time range or exact date.

use sentinel hub in QGIS 3.2.1

8. It will take time but image will be turn up on QGIS canvas.

use sentinel hub in QGIS 3.2.1

9. After rendering you can also download the image in different formats i.e. PNG, JPEG, 8-bit TIFF etc. You can set resolution and also can save current visible window or custom window.

This all about how to use sentinel hub in QGIS 3.2.1. If you face any problem in this do comment. Any suggestions and feedback are welcomed.

More from us:

3 thoughts on “Use Sentinel hub in QGIS 3.2.1 – Remote Sensing”

  1. I tried to follow the footsteps, but I got an image of an error message in QGIS3.4:

    Sentinel Hub

    The bounding box area is too large! Please zoom in.

    I tried to zoom in but nothing happened..
    Hope you can help me to clarify

    1. sometimes Sentinel does not support visualization of many layer at same time. You try it by deselecting all the layers and selecting back. Hope it works

  2. I downloaded the layer and tried to load in a different file but it says that the sentinel image is too large.How can I split into multiple bounding boxes?
