GeoJSON to GeoTIFF – Vector to Raster Conversion

GeoJSON is an open standard geospatial data interchange format that represents simple geographic features and their non-spatial attributes. It is based on JavaScript Object Notation (JSON) and serves as a format for encoding various geographic data structures.

TIFF, also known as the Tagged Image File Format, is a file format designed for transferring, storing, and displaying raster images. It is commonly used for scanned aerial photography, maps, digital satellite imagery, and other geographic data.

GeoTIFF is a metadata standard that is in the public domain. It enables the embedding of georeferencing information in a TIFF file. This additional information can include projections, coordinate systems, ellipsoids, datums, and all other necessary details to establish the precise spatial reference for the file.

Using IGIS Map Tool you can easily convert – GeoJSON to GeoTIFF. You can also do other GIS Data Conversion using this tool.

IGISMAP to Convert GeoJSON to GeoTIFF

For GeoJSON to GeoTIFF conversion, go to IGIS Map Tool, after logging in with your registered email and password. If you are a new user, click the Sign Up button in the Login popup and register to IGISMAP by filling the details.

IGISMAP

There are four main steps for using GIS Converter:

  • Click on Tool Converter
  • Upload the data
  • Choose the format to which it should be converted
  • Download the converted file

Step one is to upload your GeoJSON file which you want to convert. You can upload your file from system or select from the Recent Files.

Upload GeoJSON

Here we have uploaded the GeoJSON file of USA.

Step two is to select the output format from the dropdown for the converted file, in this case its GeoTIFF. You can also set the Coordinate Reference System of your preference. As a default CRS will set to WGS 84 (World) [EPSG:4326]. Now Now Click on the Convert File.

Select GeoTIFF as Output Format

Your GeoJSON file will then gets converted to GeoTIFF file after a few seconds and will be available for downloading.

Download GeoTIFF File

You can also choose to style the layer or continue with further conversion process by clicking the Convert Another File button.

Converted Files section from the dashboard contains the list of the details of all the conversion done in your account, providing both input and output data available for download their corresponding formats.

Download free shapefile of various countries.

Create your own shapefile and share with your clients or embed on your website.

More on Conversion:

Convert KML to DXF

Are you looking for converting your KML data file into DXF format for your GIS project or uploading in the CAD system? Have you extracted and downloaded KML file from Google Earth or Google map and want to render it with your geo library which support DXF format? You can carry out this process using any GIS or Design specific desktop software. There are also a number of online tools to perform this conversion. but If you don’t want to spend so much time just on conversions and want an easy way for conversions. Here is an amazing tool for converting your data files within a minute, i.e. MapOG Converter.

MapOG Converter

IGIS Map converter is an incredible tool for data file conversions. It will translate an AutoCAD file (in DXF format) to a shapefile or KML format. It can also convert from KML format to shapefile, or KML to DXF, or Shapefile to DXF.  It Convert GIS / CAD files online without using complex and Enterprise Software like ArcGIS, QGIS, AutoCAD etc. IGIS Map converter is much easier to use then any other conversion software or tool.

MAPOG to Convert KML to DXF

Go to MapOG Converter Tool, after logging in with your registered email and password. If you are a new user, click the Sign Up button in the Login popup and register to IGISMAP by filling the details.

There are three main steps for using GIS Converter:

  • Upload the data
  • Choose the format to which it should be converted
  • Download the converted file.

Step one is to upload your KML file which you want to convert. You can upload the file from your system or select from the Recent Files.

Upload KML

Here we using the KML file of New York state boundary.

Step two is to select choose the output format of the converted file, in this case its DXF. You can also set the Coordinate Reference System of your preference. As a default CRS will set to WGS 84 (World) [EPSG:4326]. Click on the Convert File button.

Select DXF as Output Format

Your KML file will then get converted to DXF file after a few seconds and will be published in the map canvas. You can download the DXF file of New York state boundary by clicking the Download Converted File button.

Download and Publish DXF File

You can also choose to style the layer or continue with further conversion process by clicking the Convert Another File button.

Converted Files section from the dashboard contains the list of the details of all the conversion done in your account, providing both input and output data available for download their corresponding formats.

Conclusion

IGIS Map Converter Tool provides many benefits other then just conversion of data. This tool provides us to generate this published map in PDF or as image format.

InfoGISMapOG supports most of the commonly used GIS or AutoCAD files like Shapefile SHP, KML, KMZ, CSV, TopoJSON, GeoJSON, GML, DXF, GeoTIFF, NetCDF, GRIB, HDF5, OSM, PBF, and many more raster and vector files, along with that it support more than 4000 Coordinate Reference System.

IGIS Map Converter is a online tool for converting GIS data files from one format to another. which helps you in easy data conversion and beautiful and incredible map creation in no time. IGIS Map converter online tool is recommended for better and easy conversions.  If you want you can also use ogr2ogr offline conversion tool for convert KML to DXF format.

Need Sample data for research and study – Download Shapefile of Countries

If you face any problem during implementing this tutorial, drop a mail at support@igismap.com, also feel free to comment in given comment box.

Convert HDF5 to Geotiff

In this article we are discussing about converting HDF5 to Geotiff file format. The question may arise in your mind that why would anyone convert HDF5 data into geotiff. The answer is simple, not every server or software support HDF5 data so for that you need to install some plug-ins that may take time in your analysis process.

Online Tool to Convert HDF5 to GeoTiff

Convert HDF5 to Geotiff

HDF5 (Hierarchical Data Format) file is Multi-Dimensional data that contains data in hierarchical format. That means in one file we have multiple bands and that bands also contains sub bands. That can defines as a tree type structure. You may look over details in multidimensional HDF5 Data.

Convert HDF5 to Geotiff using GDAL utility-

Here we have used GDAL Utility that is gdal_translate. For using this utility you need to add GDAL in your system. please follow the given command

To check the availability you can type ogr2ogr in command prompt and get the following result.

After setting the GDAL utility in system, you can run the conversion command for HDF5 file, which is

–> gdal_translate -a_srs EPSG:4326 HDF5:File_name.hdf5:BAND_Name -of ‘Gtiff’ Output_FileName.geotiff

Gdal_translate has some options, which can be seen by typing gdal_translate in your command prompt.

Here, in the command we have -a_srs to assign SRS (spatial reference system) , specify the HDF5 file with band. the option -of ‘Gtiff’ shows the output file format.

You may also look for other conversion to GeoTiff i.e from NetCDF to GeoTIFF or from Grib to GeoTIFF file.

Output In QGIS software- Convert HDF5 to Geotiff

Please let us know, if you face any problem or require any help in conversion by commenting in given comment box.

Convert NetCDF to Geotiff

In this article we are going you discuss conversion process of NetCDF to geoTIFF file. Here this conversion is required because many of servers does not directly support NetCDF. You need to install some plug-ins to publish and view the Netcdf data. So it would be better to convert the Netcdf data in geotiff for particular bands so that you do not have to install plugins.

Online Tool to Convert NetCDF to GeoTiff

Convert NetCDF to Geotiff

NetCDF data is a multi-Dimensional data to store large number of bands in one file. There can be various dimensional such as space (Latitude, Longitude and Altitude) and time. In bands you can have information about pressure, temperature, wind direction etc. You can look over in detail of multidimensional data of NetCDF file.

Convert NetCDF into GeoTiff using gdal utility

For using Gdal utility you need to add gdal in your system. For that you can follow the given commands

To check the availability of ogr2ogr in system, you can type the command ogr2ogr and get following response

Now you can follow the given command to convert NetCDF in GeoTiff

–> gdal_translate -a_srs EPSG:4326 NETCDF:File_Name.nc:Band_Name  -of ‘Gtiff’ Output_FileName.geotiff

Here we have used gdal_translate utility of GDAL. It has following options

Here -a_srs srs_def defines the assignment of SRS (Spatial Reference system) to output file. we have selected EPSG (European Petroleum Survey Group)  4326. You can choose your file’s SRS. The next option is NetCDF file name with a band which needed to be convert in geotiff. The option -of is the Output file format. Here ‘Gtiff’  is geotiff driver in gdal. After this specify the output file name with .geotiff or .tiff extension.

Output Geotiff file- Convert NetCDF to Geotiff

The generated output tiff file can be viewd in QGIS software.

The output shows one of the band converted into geotiff. It has multiple bands. Similarly you can can convert other file in geotiff like HDF5 to GeoTIFF or Grib to GeoTIFF.

For more information or any help you can comment in given box. We are always available for your help.

Convert GRIB to Geotiff

In this tutorial, we will find out how a can we convert GRIB to GeoTIFF file format. First of all the question is what is GRIB file and why anyone would convert the GRIB file in Geotiff format.

Here is the online Tool to Convert GRIB To GeoTiff

Convert GRIB to GeoTIFF

Before taking to conversion of GRIB and GeoTIFF, lets first understand what is GRIB and What is GeoTIFF.

GRIB (General Regularly-distributed Information in Binary) files are multidimensional files. These files are used to store Meteorological data. The data is store in image mosaic format. That measn all the raster bands ate mosaic together to store in one file. You may also look over details of GRIB Multi dimensional data.

Convert GRIB file in Geotiff using GDAL utility-

Here GDAL Utility (gdal_translate) is used . For using this utility you need to add GDAL in your system. please follow the given command

To check the presence of this library, you can type ogr2ogr in command prompt and get the following output.

Now follow the command to convert GRIB in geotiff.

–> gdal_translate -b 354 -a_srs EPSG:4326 GRIB_Filename.grb2 -of Gtiff’ Output_tiffname.geotiff

The options available in gdal_translate utility can be viewed by executing command gdal_translate on command prompt.

Here, in the command we have -a_srs to assign SRS (spatial reference system) , specify the GRIB file. The option -of ‘Gtiff’ shows the output file format.

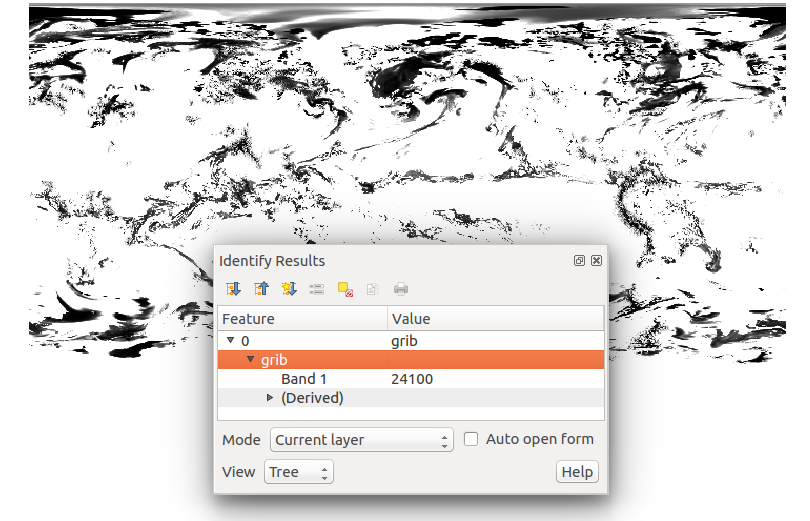

Output in QGIS software

Here we have more conversion as Netcdf to geotiff, HDF5 to geotiff etc., which can follow to convert your data.

Please feel free to comment in given box for any help.

Convert Geojson to GML- Geography Markup Language

This article is about Convert GeoJSON to GML. Here we are using GDAL utility (ogr2ogr) for conversion. This conversion become useful when you just wants to study or analysis the data in text format. In GML format stores data as text in tags. It makes easy for user to understand the details of attributes. Before conversion, lets look for GeoJSON and GML (Geography Markup Language) in detail.

Convert Geojson to GML

Lets look for specification of GML and GeoJSON file before moving for conversion, as you should be aware of how the files are structured, so that if conversion has any minor error then it can be corrected. If you know specification of both the files, then you may skip and navigate to convert.

Online Tool to Convert GeoJSON To GML

Specification of GML – Convert Geojson to GML

GML stores geographic information as text developed by the OpenGIS Consortium (OGC). GML is based on XML and it is not programming language. it is just data describing language. It provides bounding box in the starting of file in ‘Boundedby’ tag. Feature member is defined with geometry property, SRS (Spatial reference system) used, coordinates and attributes.

Specification of GeoJSON

Geojson data is open standard format, contains simple geographical feature with non-spatial data. In type, it has feature collection. That contains name, CRS (coordinate reference system) and features. These features can be line, point, polygon, Multi-Line string and multi-polygon. Properties contains all attribute information.

Convert Geojson to GML using GDAL utility-

For converting GeoJSON to GML we need to have GDAL library in system. you can follow the commands to download the library.

The presence of this utility  can be tested by typing ogr2ogr in command prompt.

Now, to check the drivers available you can follow the given command,

–> ogr2ogr –formats

Convert GeoJSON to GML is an easy process, we also can assign the SRS (Spatial reference system) to the generated output file. ogr2ogr have various options, which can be used while converting file in other format.

–> ogr2ogr -f ‘GML’ -a_srs EPSG:4326 Output_fileName.gml Input_fileName.geojson

Here -f is an option for output file format. The ‘GML’ is driver available for converting file in GML.

Output of Convert Geojson to GML-

The Generated file can be open in any test editor.

We can also help you out in conversion like Shapefile to geopackage, KML to GML , shapefile to TopoJSON and many more.

Feel free to comment in given box for any help or suggestions.

Convert Geojson to MIF MapInfo file

In this article we will be discussing about convert GeoJSON to MIF Mapinfo using GDAL utility (Ogr2ogr). This conversion is useful with MapInfo mapping and geographic analysis softwares.

Convert Geojson to MIF MapInfo file

We must understand GeoJSON and MIF format in detail before conversion.

Convert Online GeoJSON to MIF Mapinfo

Specification of GeoJSON data- Convert Geojson to MIF

Geojson data is open standard format, contains simple geographical feature with non-spatial data. In type, it has feature collection. That contains name, CRS (coordinate reference system) and features. These features can be line, point, polygon, Multi-Line string and multi-polygon. Properties contains all attribute information.

Specification of MIF data- Convert Geojson to MIF

MIF (Map Info File) File format used by MapInfo mapping and geographic analysis software. This stores a map visualization in a format that can be recognized by third party applications. Also used as an exchange format between GIS applications. This sometimes accompanied by a .MID (MapInfo data) file that contains additional spatial data. MID files are GIS data files created by MapInfo, a spatial data analysis and visualization software, saves spatial data for a corresponding .mif (MapInfo Interchange Format) file. Also used for storing larger data sets not expressed in the MIF file.

MIF file show some general property when open with QGIS software, as like :

i.) Storage type of this layer
–> MapInfo File
ii.) Description of this provider
–> OGR data provider (compiled against GDAL/OGR library version 2.2.2, running against GDAL/OGR library version 2.2.2)
iii.) Source for this layer
–> /var/www/html/PHP_pgrouting/public/shpfolder222/newwhello.mif
iv.) Geometry type of the features in this layer
–> Line
v.) The number of features in this layer
–> 19148
vi.) Capabilities of this layer
–> Fast Access to Features at ID, Presimplify Geometries, Presimplify Geometries with Validity Check
vii.) In layer spatial reference system units
–> xMin,yMin 68.4982,7.92528 : xMax,yMax 97.3348,35.5013
viii.) Layer Spatial Reference System
–> +proj=longlat +datum=WGS84 +no_defs

Convert Geojson to MIF MapInfo file

  • Go to MapOG Tool
  • Tap on Switch To and click on Converter.
  • Now upload your data from system or drag & drop from system.
  • Once input is uploaded select the output format and if you want to change coordinate reference system then click on the third option. And in the last click on Convert File.
  • You converted file is published on the map directly.
  • Check video for steps of conversion for Geojson to MIF.

Convert GeoJSON to MIF using GDAL utility-

Gdal library should be available in system when converting data format from one to another. This utility can be installed in system by following the given commands.

Convert Geojson to MIF

The options available with ogr2ogr utility cab seen by typing ogr2ogr in command prompt.

The drivers or format supported by utility can be seen by typing the following command.

–> ogr2ogr –formats

Convert the Geojson data in MIF with given command.

–> ogr2ogr -f  ‘MapInfo File’ -a_srs EPSG:4326 MIF_output.mif geojson_input.geojson

The option -a_srs is used to assign coordinate system to generated output file.

Output in QGIS software- Convert Geojson to MIF

The generated output file can be open with QGIS open source software.

You can also use conversions using gdal utility as netcdf to geotiff, Hdf to geotiff, shapefile to topojson and many more.

Please comment in the given comment box for any help and suggestions. We are always ready for your help.

You might be interested in Different ways to convert Shapefile to GeoJSON

Convert GeoJSON to KML

In this article we would be discussing about conversion of GeoJSON data to KML (Keyhole Markup Language). This conversion is required when you are using software such Google earth to see the data. KML works great with Google earth. There is simple step to Convert GeoJSON to KML using ogr2ogr utility from GDAL library. Before that we must go through specification of GeoJSON and KML.

Here is the way to Convert the GeoJSON to KML online

Specification of GeoJSON – Convert GeoJSON to KML

Geojson data is open standard format, contains simple geographical feature with non-spatial data. In type element it has feature collection. That contains name, CRS (coordinate reference system) and features. These features can be line, point, polygon, Multi-Line string and multi-polygon.

Convert GeoJSON to KML

Specification of KML- Convert GeoJSON to KML

The KML (Keyhole Markup language) this data format contains information in tags. SimpleField contains attribute information with name and type. Style tag contains the style of file as color of lines, points and polygons. Geometry is stored as coordinates in file.

Convert GeoJSON to KML using GDAL Utility-

The conversion requires Gdal utility. This utility can be installed in the system by following the given commands.

By typing ogr2ogr in command prompt you can get the following result. This result shows the presence of ogr2ogr utility in system.

To know the version of installed GDAL library you can type,

–> gdalinfo –version

Before executing the conversion command, you should check the drivers. The drivers can be checked by typing

–> ogr2ogr –formats

in your command prompt. Now check for the GeoJSON and KML driver.

After checking the drivers you can execute the following command.

–> ogr2ogr -f ‘KML’ -a_srs EPSG:4326 Output_fileName.kml Input_FileName.geojson

Output of Convert GeoJSON to KML-

The generated output file can be open in editor to see the content.

In the similar way you can also convert shape file to MIF, shapefile to sql and shape file to excel file.

You can also comment in given comment box for any query, help or suggestions.

Convert GeoJSON to Shapefile

In this article we are converting GeoJSON to Shapefile shp format. You might be thinking why would anyone convert GeoJSON in shapefile. Answer is very simple Shapefile is very popular data format with open specification for data interoperability among GIS (Geographical information system) softwares. Before moving towards conversion steps we must look for GeoJSON and Shape file in detail. There Specification is given below.

Here is the Online Converter Tool from GeoJSON To Shapefile

Specification of GeoJSON-

Geojson data is open standard format, contains simple geographical feature with non-spatial data. In type element it has feature collection. That contains name, CRS (coordinate reference system) and features. These features can be line, point, polygon, Multi-Line string and multi-polygon.

Convert GeoJSON to Shapefile

Specification of Shapefile-

Shapefile is very popular data format specially among open source GIS softwares. It has some mandatory files, which contains various information such as index of geometry, attribute data and projection information.

  1. shx- contains geometry index,
  2. shp- contains geometry,
  3. dbf- contains attribute data,
  4. prj- contains projection data.

Convert GeoJSON to Shapefile using MapOG Tool

Convert GeoJSON to Shapefile Shp Using Gdal Utility-

Conversion from geojson to shapefile requires GDAL library in your system. For downloading it you can follow given commands.

To check the availability of library can be check by typing ogr2ogr in command prompt. You can also check the version of GDAL library by typing gdalinfo –version.

To convert data from geojson to shapefile we must have format available in library. To check the formats available you can execute the following command,

–> ogr2ogr –formats

you will get the following list that contains the drivers list. Check for the GeoJSON and Shapefile driver.

Now you can execute the conversion command given below,

–>ogr2ogr -f ‘ESRI Shapefile’ -a_srs EPSG:4326 Output_fileName.shp Input_FileName.geojson

Here Command shows some options of ogr2ogr utility as -f, which shows output file format, -a_srs shows SRS (spatial reference system) assigned to output file. The Generated output file can be seen on QGIS software.

Converted Output GeoJSON to Shapefile In QGIS software-

In similar way you can also convert Shp to geojson, shp to KML or many more.

Feel free to contact for any help or suggestions by commenting in given comment box.

KML to GML – Convert Keyhole to Geography

Sometimes we need to convert KML to GML where the software supports GML language. But before converting Keyhole markup language to Geography markup language, you should know the basic structure of KML and GML. So that if the file is corrupted then before converting it you can correct it manually and process the same in any GIS converter software to work properly. If you already know structure of this files, then you can directly navigate to the main topic i.e kml to gml conversion of this page.

Here is the Online Converter Tool from KML To GML

Know KML and GML data structure before converting kml to gml

WHAT IS KML (Keyhole Markup Language)? – KML (Keyhole Markup Language), is an XML grammar and file format for modeling and storing geographic features such as points, lines,images, and polygons for display in the Google Earth client.KML is based on GML, although it doesn’t formally import GML schemas. KML language is used by a variety of GIS and mapping applications and the specifications are freely available to the public and available to the user community without charge or restriction. The Google Earth client supports a number of display features for rich presentation of GIS data. All of the features supported by the Google Earth client are described in KML. The Google Earth client supports a number of two-dimensional geometric shapes for display in the 3D viewer.

<Schema name="roads" id="roads">
 <SimpleField name="MED_DESCRI" type="string"></SimpleField>
 <SimpleField name="RTT_DESCRI" type="string"></SimpleField>
 <SimpleField name="F_CODE_DES" type="string"></SimpleField>
 <SimpleField name="ISO" type="string"></SimpleField>
 <SimpleField name="ISOCOUNTRY" type="string"></SimpleField>
 <SimpleField name="Length_km" type="float"></SimpleField>
 <SimpleField name="Latitude" type="string"></SimpleField>
 </Schema>
 <Folder><name>roads</name>
 <Placemark>
 <Style><LineStyle><color>ff0000ff</color></LineStyle><PolyStyle><fill>0</fill></PolyStyle></Style>
 <ExtendedData><SchemaData schemaUrl="#roads">
 <SimpleData name="MED_DESCRI">Without Median</SimpleData>
 <SimpleData name="RTT_DESCRI">Secondary Route</SimpleData>
 <SimpleData name="F_CODE_DES">Road</SimpleData>
 <SimpleData name="ISO">IND</SimpleData>
 <SimpleData name="ISOCOUNTRY">US</SimpleData>
 <SimpleData name="Length_km">0.3</SimpleData>
 </SchemaData></ExtendedData>
 <LineString><coordinates>77.8277403975188,35.5012774951028 77.8257523065223,35.4995003281062</coordinates></LineString>
 </Placemark>

WHAT IS GML (Geography Markup Language)? GML (Geography Markup Language) is only concerned with the representation of the geographic data content. While GML is an effective means for transporting geographic information from one place to another we expect that it will also become an important means of storing geographic information as well.

<gml:boundedBy>
 <gml:Box>
 <gml:coord><gml:X>-164404.6900820375</gml:X><gml:Y>893749.1179630321</gml:Y></gml:coord>
 <gml:coord><gml:X>2727970.187011702</gml:X><gml:Y>3932312.865004988</gml:Y></gml:coord>
 </gml:Box>
 </gml:boundedBy>
 <gml:featureMember>
 <ogr:raods fid="raods.0">
 <ogr:geometryProperty><gml:LineString srsName="EPSG:32643"><gml:coordinates>756486.657418272,3932312.4133327 756311.93383727,3932110.06520674</gml:coordinates></gml:LineString></ogr:geometryProperty>
 <ogr:MED_DESCRI>Without Median</ogr:MED_DESCRI>
 <ogr:RTT_DESCRI>Secondary Route</ogr:RTT_DESCRI>
 <ogr:F_CODE_DES>Road</ogr:F_CODE_DES>
 <ogr:ISO>IND</ogr:ISO>
 <ogr:ISOCOUNTRY>US</ogr:ISOCOUNTRY>
 <ogr:Length_km>0.3</ogr:Length_km>
 <ogr:Latitude xsi:nil="true"/>
 </ogr:USraods>
 </gml:featureMember>
 <gml:featureMember>

Convert KML to GML using Ogr2ogr utility-

For using this utility you need to install GDAL OGR2OGR in your system. To  install this you can follow the given commands.

KML to GML – Convert Keyhole to Geography

If you have already install ogr2ogr utility you can check by typing ogr2ogr in terminal.

Now run the given command to convert from KML to GML-

--- ogr2ogr -f 'GML' Output_GML.gml Input_KML.kml

Changing Coordinate System of Output File kml to gml-

Sometimes we need different coordinate system. So to get different coordinate system from input you can follow this given command.

--- ogr2ogr -f 'GML' -t_srs EPSG:32643 -s_srs EPSG:4326 Output_GML.gml Input_KML.kml

Convert KML (KeyHole Markup Language) to GML (Geography Markup Language) Using PHP Code-

If you want the conversion using programing or don’t want to use terminal then this can also be done using PHP. You can create a function that defined this command as string and can give this string in shell_exec() method to execute. Shell_exec() actually execute the command and returns output as string.

public function kmltogml($kmlfilepath,$output,$srsno,$srsold){
 $query="ogr2ogr -f GML -t_srs EPSG:$srsno -s_srs EPSG:$srsold $output.gml $kmlfilepath";
 shell_exec($query);
 }

Generated output of kml to gml –

KML to GML – Convert Keyhole to Geography

If you have any problem regrading this tutorial, please let us know via comments  in provided comments box.

Exit mobile version
%%footer%%
