In this tutorial, we’ll walk you through the process of convert DXF to JPEG format using the Converter Tool in MAPOG Map Analysis. Whether you’re new to MAPOG or have some experience, this easy-to-follow guide will help you confidently convert your DXF files to JPEG.
What is DXF Data Format:
DXF is short for Drawing Exchange Format or Drawing Interchange Format and is a type of vector file. Engineers, designers and architects often use the DXF format for 2D and 3D drawings during product design. This data format can be used in case of analyzing the maps. It can be of many types like point, line and polygon or any boundaries.
Converting DXF Data into JPEG Format:
MAPOG’s Map Analysis offers a versatile Converter Tool, allowing users to easily convert data between formats to meet their specific needs. This tool streamlines the process of adapting data for a wide range of GIS applications, ensuring both flexibility and efficiency when managing different file types. For instance, MAPOG’s Converter Tool can convert DXF data into JPEG format, effectively reducing file size while preserving essential geographic details. This makes the data better suited for online mapping and interactive platforms. Ultimately, this enhances workflows and greatly improves the overall usability of GIS data.
Steps for Converting DXF to JPEG
Step 1: Upload Your Data:

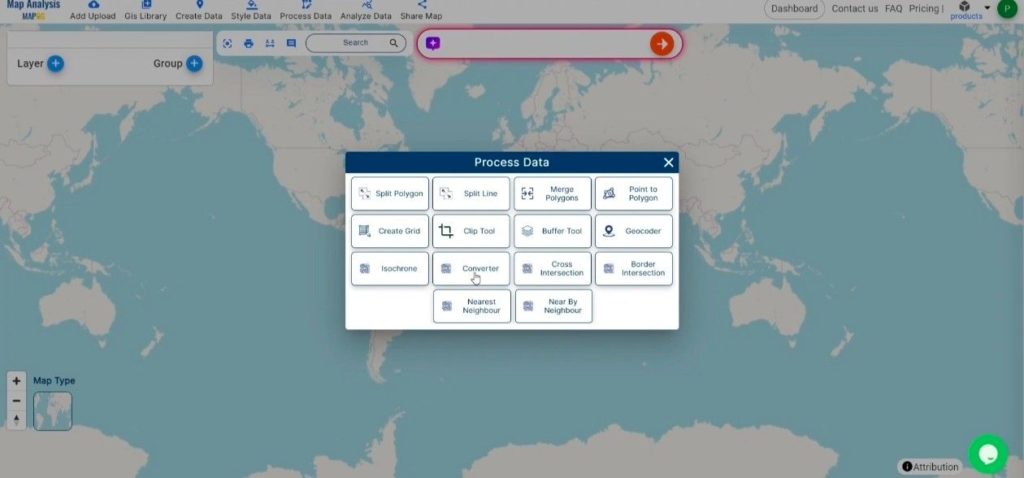

- Go to “Process Data” and choose the “Converter Tool” option.

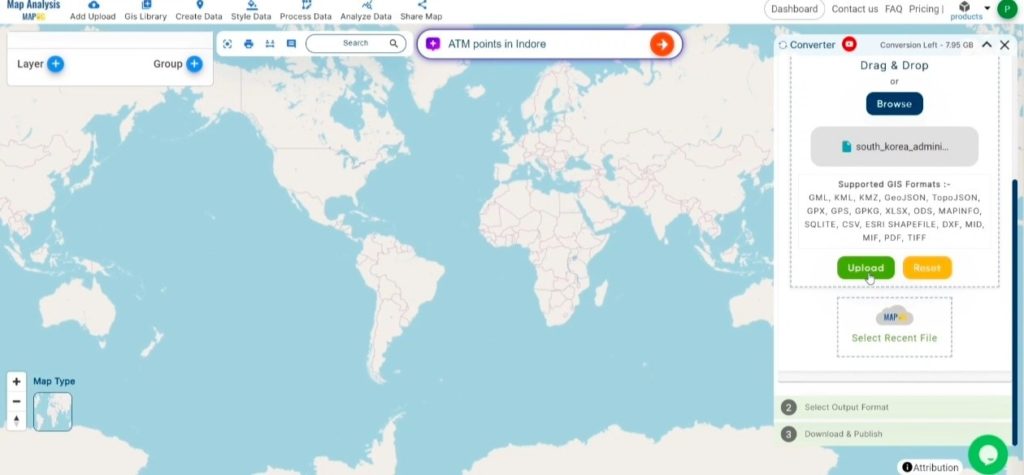

2.Upload your DXF file to start the conversion process by providing the data you wish to transform.
Step 2: Choose the Output Format:

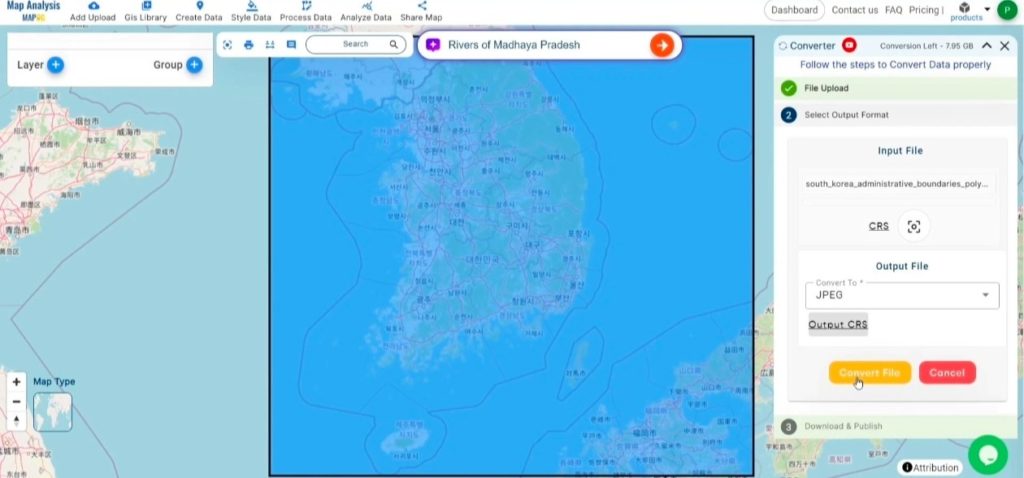

- Select JPEG as the output format to export your data. Although the tool offers several format options, this guide focuses specifically on converting your file to JPEG.

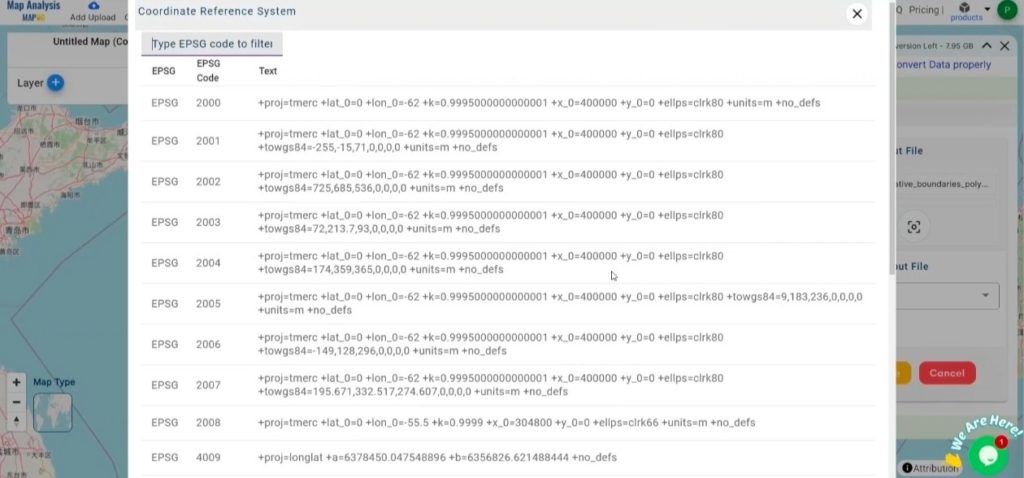

2. You can also set the Output CRS according to your spatial analysis requirements.
Step 3: Run the Conversion:
Head over to ‘Convert Files’ and let the tool handle the conversion for you. Just upload your data, and the Converter Tool will automatically take care of converting your DXF file into JPEG format, making the process seamless and efficient.
Step 4: Review and Download:

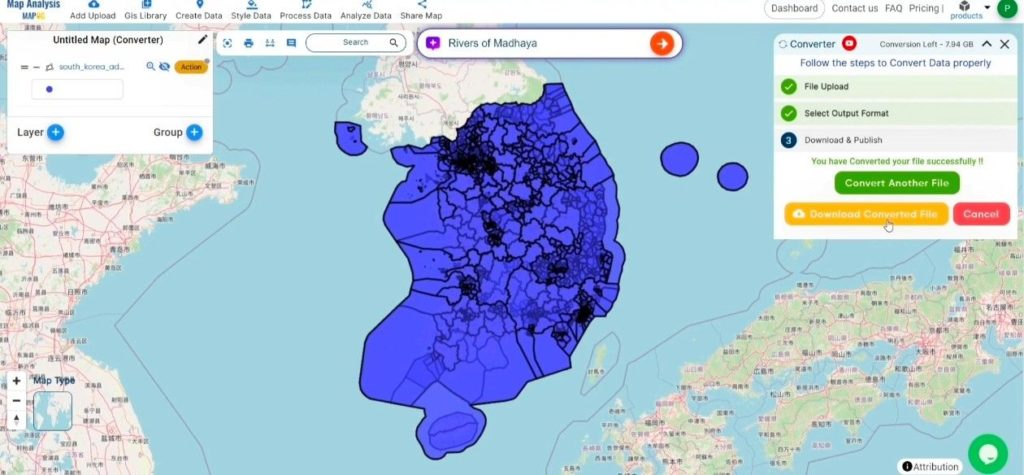

Review your converted JPEG data to verify its accuracy. Once you are satisfied with the results, download the file. This step ensures that the conversion was successful and that your data is correctly preserved.
